Paint Production Line​

Paint Production Line​​

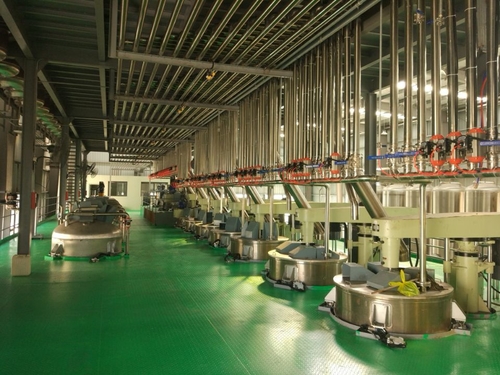

A ​​Paint Production Line​​ is a fully integrated industrial system designed for the efficient manufacturing of paints, coatings, and related products. It combines raw material handling, mixing, dispersion, filling, and packaging into a streamlined process, ensuring consistent quality, high throughput, and compliance with industry standards.

​​Key Components & Process Flow:​​

1. ​​Raw Material Storage & Feeding​​

   • Base materials (resins, pigments, solvents, additives) are stored in ​​storage tanks​​ or ​​silos​​ and fed into the system via pumps or conveyors.

   • Precision metering systems ensure accurate ingredient ratios.

2. ​​Pre-Mixing & Dispersion​​

   • Ingredients are pre-mixed in ​​high-speed dispersers​​ or ​​mixing kettles​​ to form a uniform paste.

   • ​​Grinding mills​​ (e.g., sand mills, ball mills) refine particle size for optimal color and texture.

3. ​​Let-Down & Blending​​

   • The pigment paste is transferred to ​​let-down tanks​​, where it is mixed with additional resins, solvents, and additives to achieve the final paint formulation.

   • ​​High-shear mixers​​ or ​​agitated kettles​​ ensure homogeneity.

4. ​​Filtration & Quality Control​​

   • The paint is filtered to remove impurities (e.g., undispersed particles) using ​​bag filters​​ or ​​cartridge filters​​.

   • Lab testing ensures viscosity, color, and performance meet specifications.

5. ​​Filling & Packaging​​

   • Automated ​​filling machines​​ dose paint into containers (cans, drums, or IBCs).

   • Labeling, capping, and palletizing are integrated for efficient packaging.

​​Applications:​​

• Architectural paints (interior/exterior).

• Industrial coatings (automotive, marine, protective).

• Specialty paints (anti-corrosive, fire-retardant, UV-resistant).

​​Advantages:​​

• ​​High Efficiency​​: Automated processes reduce labor costs and downtime.

• ​​Consistency​​: Precision controls ensure uniform product quality.

• ​​Scalability​​: Modular design allows capacity expansion.

• ​​Compliance​​: Meets environmental and safety regulations (e.g., VOC limits, GMP).

​​Customization Options:​​

• ​​Capacity​​: Lab-scale, pilot, or full-scale production.

• ​​Technology​​: High-speed dispersers, bead mills, or inline mixing.

• ​​Materials​​: Stainless steel, explosion-proof designs, or hygienic finishes for food-safe paints.
