Name: GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings
Brand: Yixing Chenglong Coatings Machinery Co., LTD
SKU: GFJ-H
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Applicable To: All Kinds Of Thick Coatings

Structural Features: There Is No Resonance Phenomenon When The Double-shaft Concentric Type Is Stirred

Name: GFJ-H Multi-purpuse Kettle Series

Product Brand: Cheng Long

Customized Support: OEM, ODM

Production Specifications: 10 Cubic Meters - 40 Cubic Meters

Basic Infomation

Place of Origin: China

Brand Name: Chenglong

Model Number: GFJ-H

Payment & Shipping Terms

Packaging Details: Wooden box packaging or as per customer requirements

Supply Ability: 50,00pcs/Month

Gallery

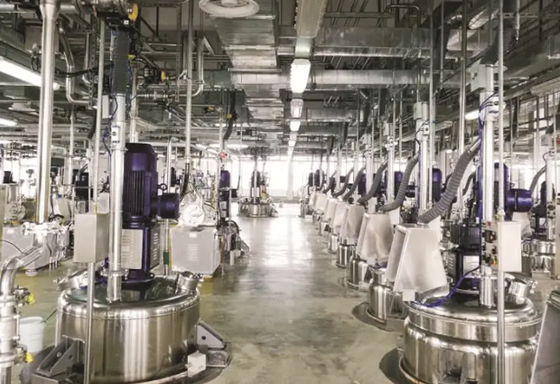

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings

Product Description

GFJ-H Multi-purpuse Kettle Series

It is mainly used in the production of various thick coatings and high-viscosity coatings (including: elastic coatings, textured coatings, base materials, etc.)

Structural features

There is no resonance phenomenon when the double-shaft concentric type is stirred. High-speed dispersion and slow mixing are integrated. The high-speed shaft can be raised and lowered, while the slow-speed shaft can scrape walls. The stirring system can deaerate under negative pressure vacuum

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings 0

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings 1

Main technical specifications and parameters

Technical/Specification	GFJ-H-2	GFJ-H-3	GFJ-H-5	GFJ-H-10
Model/Power(kw)	22/4	45/5.5	75/7.5	110/11
Volume of tank(L)	2000	3000	5000	10000
Lifting stroke(mm)	600	800	800	1000
Overal dimension(Length * Width * Height mm)	160021003500	180023003800	200025004200	250028005600
Weight of equipment(kg)	2300	2900	3500	5600

Note: Please specify your usage requirements when placing an order. We can design and manufacture according to your requirements.

Our company

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings 2

A corner of the workshop

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings 3

Corporate honors

GFJ-H Multi-Purpuse Kettle Series Used In The Production Of High-Viscosity Coatings 4
