Pigment And Ink Dispersion Equipment GFJ-B Double-Shaft Floor-Standing Disperser

1 unit
MOQ
Consultation
Price
Pigment And Ink Dispersion Equipment GFJ-B Double-Shaft Floor-Standing Disperser
Features Gallery Product Description Request A Quote
Features
Specifications
Features: The Mixing And Blending Effect Is Excellent
Applicable To: Coatings, Dyes, Pigments, Inks, Papermaking Adhesives, Etc
Name: GFJ-B Double-shaft Floor-standing Disperser
Product Brand: Cheng Long
Basic Infomation
Place of Origin: China
Brand Name: Chenglong
Model Number: GFJ-B
Payment & Shipping Terms
Packaging Details: Wooden box packaging or as per customer requirements
Supply Ability: 50,00pcs/Month
Product Description

Product Description

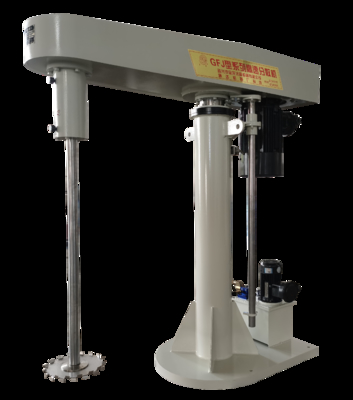

GFJ-B series of double-shaft high-speed dispersers

The GFJ-B high-speed dispersion agitator is suitable for use in coatings, dyes, pigments, inks, papermaking, adhesives and other chemical industries for stirring, dissolving and dispersing liquid and liquid-solid phase materials

When stirring and dispersing, the air retention is extremely small, and the mixing and homogenization effect is excellent. For powder and granular materials, it can make the particles smaller. Its types include fixed-speed type, double-speed type and variable-speed type. The lifting of the stirring shaft is controlled by hydraulic pressure, and all operations are centralized in a dedicated electrical cabinet



Main technical specifications and parameters

Item/modle GFJ-B-600
Speed  Electromagnetic speed control Frequency control
Main motor power(kw) 30 30,45
Speed of the dispersion axle(r/min) 120-1200 0-1500
Diameter of the dispersion disk(mm) 300x2
Oil pump motor power(kw) 1.5,2.2
Lifting height of the dispersion disk(mm) 1000,1200
Volume of Ingredlents tank(L) 1000-2000
Overall dimension Length x Width x Height (mm) 2400x1000x2300
Weight(kg) 1200



Our company

Pigment And Ink Dispersion Equipment GFJ-B Double-Shaft Floor-Standing Disperser 0



A corner of the workshop

Pigment And Ink Dispersion Equipment GFJ-B Double-Shaft Floor-Standing Disperser 1



Corporate honors

Pigment And Ink Dispersion Equipment GFJ-B Double-Shaft Floor-Standing Disperser 2
